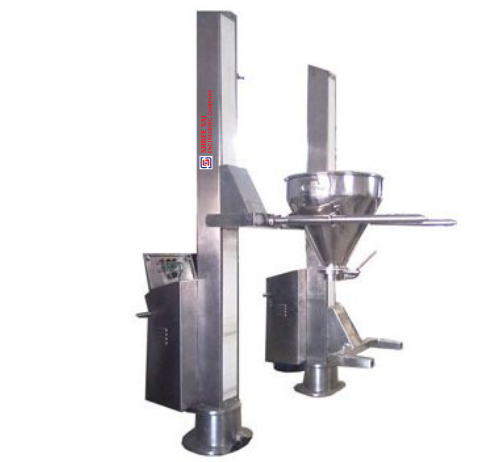

Tipper

It is on equipment operated hydraulically or mechanically for lifting and tipping FBD Bowl loaded with dried granules.Content of the Bowl is transferred smoothly to granulating equipment and through it to a BIN or on IPC container. It provides completely dust free operation and eliminates tedious scooping or manual handling. The process consists of bringing the FBD Bowl beneath the Tipper. The inverted cone of the Tipper is lowered so that the brim flange of the bowl touches the brim flange of the inverted cone. Both ore then clamped together with quick fixing clamps. The whole assembly is raised hydraulically to the required height and then rotated mechanically to 180 degree on Ms axis and lowered to a suitable height to align with the receiving container / equipment. The discharge point cone is fitted with an Iris / Butterfly valve by operating which the contents are discharged to Multi Mill or a sifter cum Multi Mill as per the process requirement. The flanged cone and the valve is of S.S.316 /304 malarial, as required. The bottom and the complete drives are covered with highly polished S.S.304 sheets to impart a cGMP finish.

Elevator Positioning Lifting Device

The Lifting & Positioning Unit / IPC Bin loader is used for transferring and discharging the material dust free and without human touch in pharmaceutical industries for Load powder in to hopper of Tablet Compression Machine It consists of a main frame, Bin fixing arm, Hydraulic lifting device and pivot base. This main frame move 360 degree on axis and Bin fixing arm move upward and downward in the frame by hydraulic cylinder and power pack system. The moveable container/Bin bringing placed beneath the fixing arm, operate the hydraulic drive system which lifts arm with the container and it raises the container till it gets stops exactly in a position, slew the column to swivel the bin over inlet of the next processing equipment, then it could be unload by opening of butterfly on the whatever next processing equipment.
